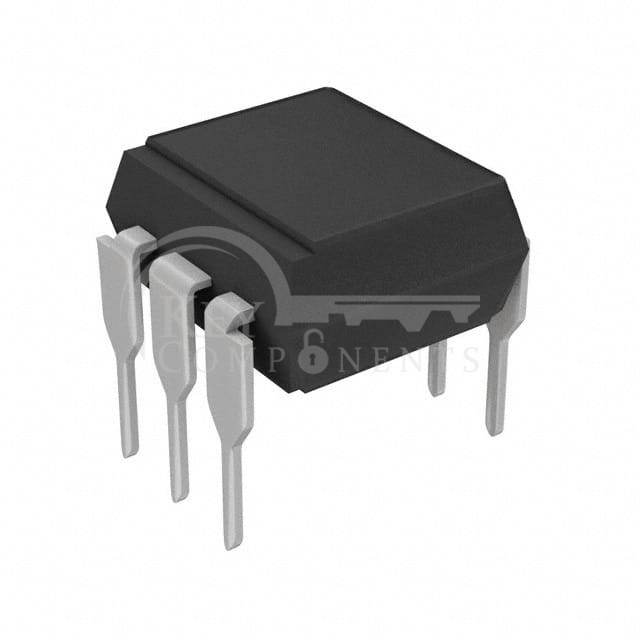

K3023P
| Manufacturer Part | K3023P |
|---|---|
| Manufacturer | Vishay Semiconductor Opto Division |
| Description | OPTOISOLATOR 5.3KV TRIAC 6DIP |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Type: | Triac |
| Zero Crossing Circuit: | No |
| Number of Channels: | 1 |
| Voltage - Isolation: | 5300Vrms |
| Voltage - Off State: | 400 V |
| Static dV/dt (Min): | 10V/µs (Typ) |
| Current - LED Trigger (Ift) (Max): | 5mA |
| Current - On State (It (RMS)) (Max): | 100 mA |
| Current - Hold (Ih): | 200µA (Typ) |
| Turn On Time: | - |
| Voltage - Forward (Vf) (Typ): | 1.3V |
| Current - DC Forward (If) (Max): | 80 mA |
| Operating Temperature: | -55°C ~ 100°C |
| Mounting Type: | Through Hole |
| Package / Case: | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package: | 6-DIP |
| Approval Agency: | BSI, CQC, CSA, cUR, UR, VDE |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
Parts Tags
K3023P Price
K3023P Distributor
K3023P Manufacturer
K3023P Technical Data
K3023P PDF
K3023P Datasheet
K3023P Picture
K3023P Image
K3023P Part
K3023P Stock
K3023P Inventory
K3023P Rfq
K3023P Inquiry
K3023P Online Order
Quote Request
- Min. :
- 1
- Availability :
- 1989 pieces
