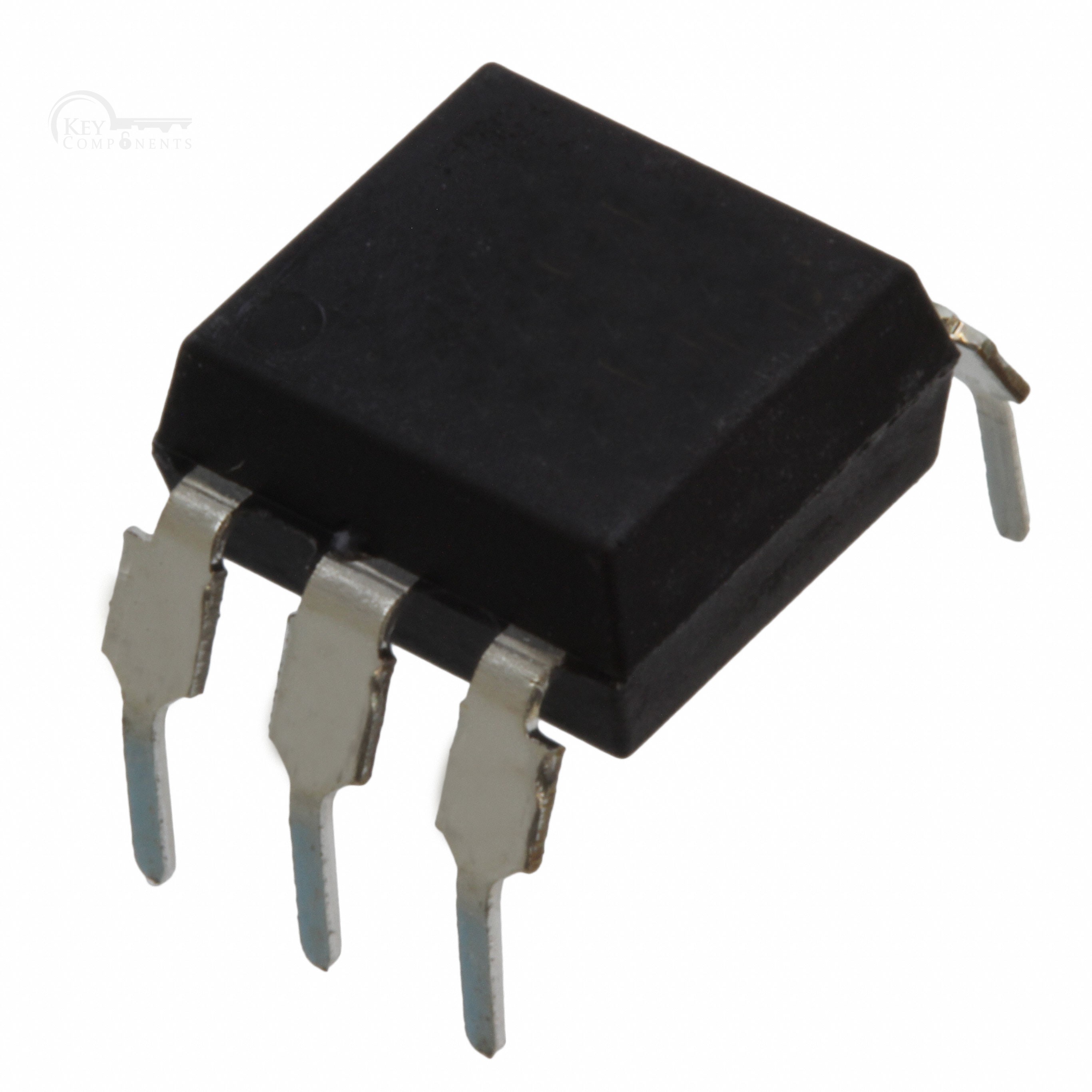

K3022PG
| Manufacturer Part | K3022PG |
|---|---|
| Manufacturer | Vishay Semiconductor Opto Division |
| Description | OPTOISOLATOR 5.3KV TRIAC 6DIP |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Type: | Triac |
| Zero Crossing Circuit: | No |
| Number of Channels: | 1 |
| Voltage - Isolation: | 5300Vrms |
| Voltage - Off State: | 400 V |
| Static dV/dt (Min): | 10V/µs (Typ) |
| Current - LED Trigger (Ift) (Max): | 10mA |
| Current - On State (It (RMS)) (Max): | 100 mA |
| Current - Hold (Ih): | 200µA (Typ) |
| Turn On Time: | - |
| Voltage - Forward (Vf) (Typ): | 1.3V |
| Current - DC Forward (If) (Max): | 80 mA |
| Operating Temperature: | -55°C ~ 100°C |
| Mounting Type: | Through Hole |
| Package / Case: | 6-DIP (0.400", 10.16mm) |
| Supplier Device Package: | 6-DIP |
| Approval Agency: | BSI, CQC, cUR, FIMKO, UR, VDE |
