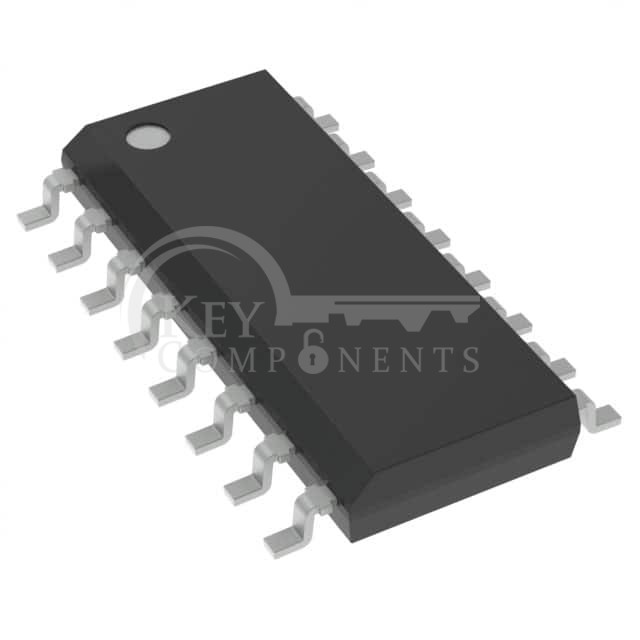

L6598D
| Manufacturer Part | L6598D |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC OFFLINE SW HALF-BRIDGE 16SO |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Isolation: | Isolated |
| Internal Switch(s): | No |
| Voltage - Breakdown: | - |
| Topology: | Half-Bridge |
| Voltage - Start Up: | 10.7 V |
| Voltage - Supply (Vcc/Vdd): | 8V ~ 16.6V |
| Duty Cycle: | 50% |
| Frequency - Switching: | 400kHz |
| Power (Watts): | - |
| Fault Protection: | - |
| Control Features: | EN |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Package / Case: | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 16-SO |
| Mounting Type: | Surface Mount |
