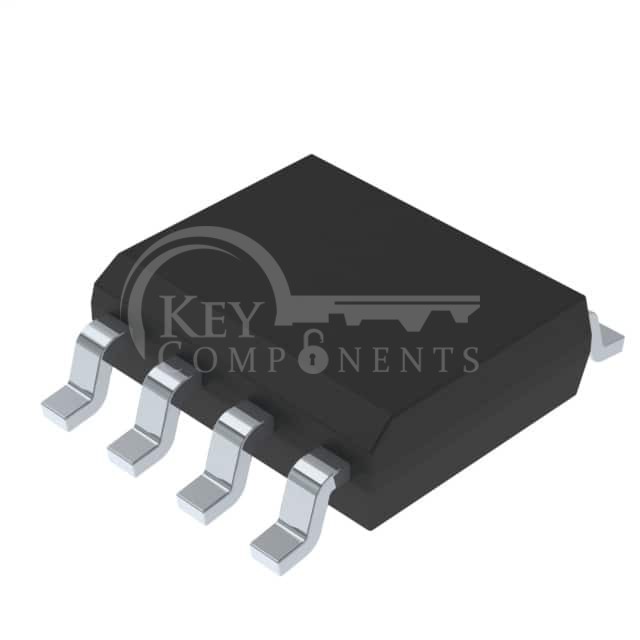

L6565D
| Manufacturer Part | L6565D |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC OFFLINE SWITCH FLYBACK 8SO |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Isolation: | Isolated |
| Internal Switch(s): | No |
| Voltage - Breakdown: | - |
| Topology: | Flyback |
| Voltage - Start Up: | 13.5 V |
| Voltage - Supply (Vcc/Vdd): | 10.3V ~ 18V |
| Duty Cycle: | - |
| Frequency - Switching: | - |
| Power (Watts): | - |
| Fault Protection: | Current Limiting |
| Control Features: | - |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SOIC |
| Mounting Type: | Surface Mount |
