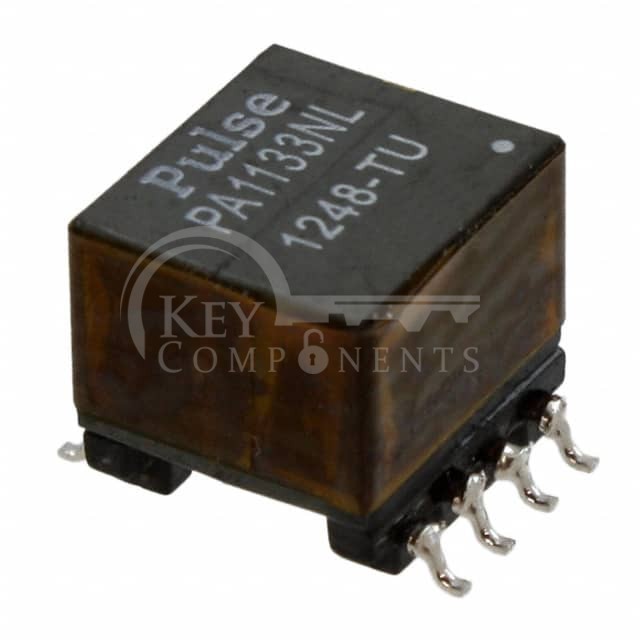

PA1133NLT
| Manufacturer Part | PA1133NLT |
|---|---|
| Manufacturer | Pulse Electronics Power |
| Description | XFRMR 3.3V 7W 253UH POE EP10 SMD |
| Category | Transformers |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Transformer Type: | Isolation and Data Interface (Encapsulated) |
| Inductance: | 253.4µH |
| ET (Volt-Time): | - |
| Turns Ratio - Primary:Secondary: | 1:0.083:0.208 |
| Mounting Type: | Surface Mount |
| Size / Dimension: | 0.515" L x 0.600" W (13.08mm x 15.24mm) |
| Height - Seated (Max): | 0.451" (11.45mm) |
| Operating Temperature: | -40°C ~ 125°C |
