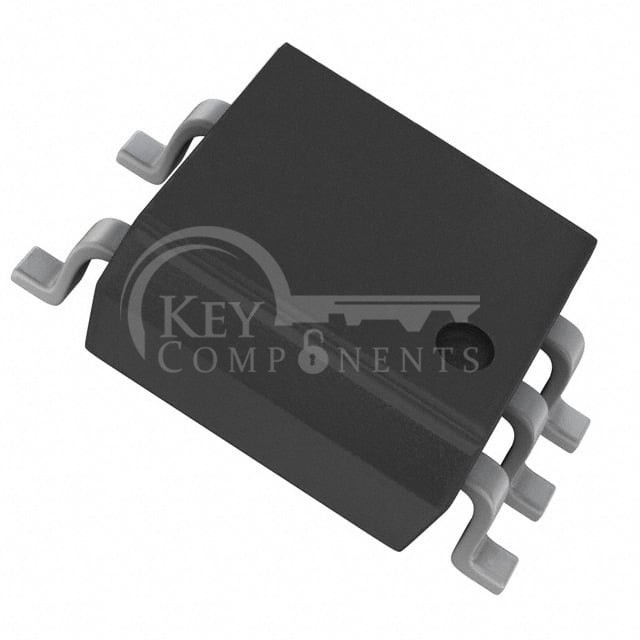

PC401
| Manufacturer Part | PC401 |
|---|---|
| Manufacturer | Sharp Microelectronics |
| Description | OPTOISO 3.75KV OPEN COLL 5MFP |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Number of Channels: | 1 |
| Inputs - Side 1/Side 2: | 1/0 |
| Voltage - Isolation: | 3750Vrms |
| Common Mode Transient Immunity (Min): | - |
| Input Type: | DC |
| Output Type: | Open Collector |
| Current - Output / Channel: | 50 mA |
| Data Rate: | - |
| Propagation Delay tpLH / tpHL (Max): | 3µs, 6µs |
| Rise / Fall Time (Typ): | 100ns, 50ns |
| Voltage - Forward (Vf) (Typ): | 1.1V |
| Current - DC Forward (If) (Max): | 50mA |
| Voltage - Supply: | 3V ~ 15V |
| Operating Temperature: | -25°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 6-SOIC (0.173", 4.40mm Width), 5 Leads |
| Supplier Device Package: | 5-MFP |
