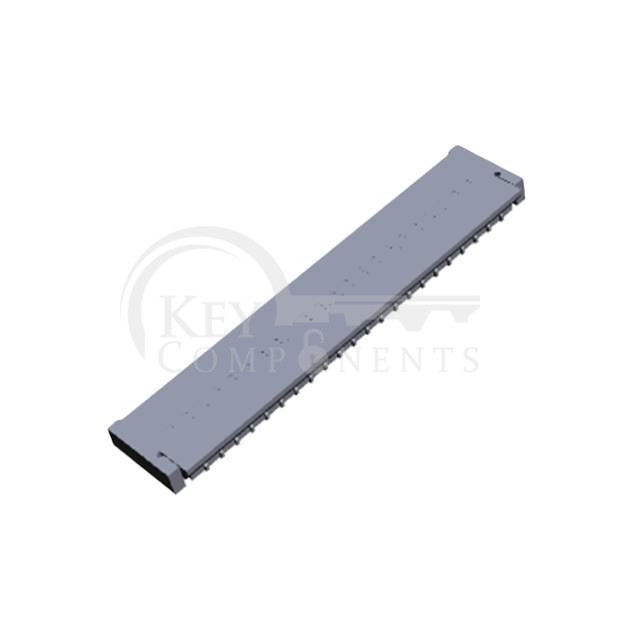

AYF334535
| Manufacturer Part | AYF334535 |
|---|---|
| Manufacturer | Panasonic Electric Works |
| Description | CONN FPC 45POS 0.30MM R/A |
| Category | Connectors, Interconnects |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Flat Flex Type: | FPC |
| Mounting Type: | Surface Mount, Right Angle |
| Connector/Contact Type: | Contacts, Top and Bottom |
| Number of Positions: | 45 |
| Pitch: | 0.012" (0.30mm) |
| Termination: | Solder |
| FFC, FCB Thickness: | 0.20mm |
| Height Above Board: | 0.035" (0.88mm) |
| Locking Feature: | Flip Lock, Backlock |
| Cable End Type: | Tapered |
| Contact Material: | Copper Alloy |
| Contact Finish: | Gold |
| Housing Material: | Liquid Crystal Polymer (LCP) |
| Actuator Material: | Liquid Crystal Polymer (LCP) |
| Features: | - |
| Voltage Rating: | 50V |
| Operating Temperature: | -55°C ~ 85°C |
| Material Flammability Rating: | UL94 V-0 |
