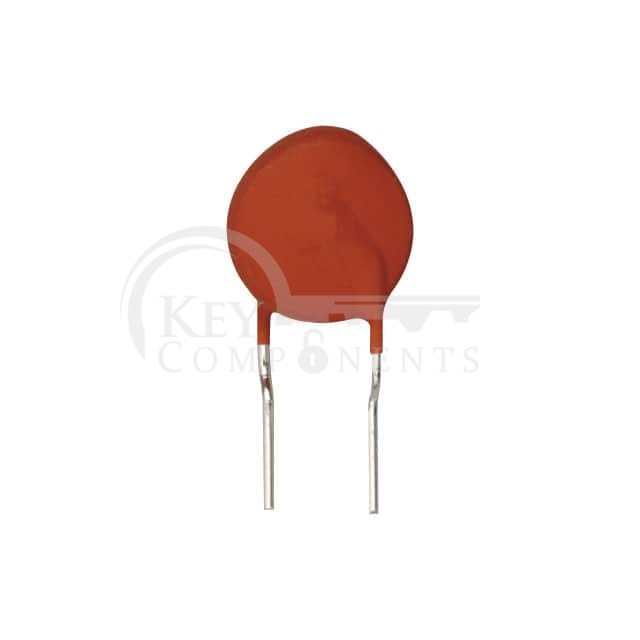

PTGL07AR450H8B52B0
| Manufacturer Part | PTGL07AR450H8B52B0 |
|---|---|
| Manufacturer | Murata Electronics |
| Description | PTC RESET FUSE 265V 105MA RADIAL |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Ceramic |
| Voltage - Max: | 265V |
| Current - Max: | 1 A |
| Current - Hold (Ih) (Max): | 105 mA |
| Current - Trip (It): | 200 mA |
| Time to Trip: | - |
| Resistance - Initial (Ri) (Min): | - |
| Resistance - Post Trip (R1) (Max): | - |
| Resistance - 25°C (Typ): | 45 Ohms |
| Operating Temperature: | -10°C ~ 60°C |
| Ratings: | - |
| Mounting Type: | Through Hole |
| Package / Case: | Radial, Disc |
| Size / Dimension: | 0.315" Dia x 0.236" T (8.00mm x 6.00mm) |
| Height - Seated (Max): | 0.591" (15.00mm) |
| Thickness (Max): | - |
| Lead Spacing: | 0.197" (5.00mm) |
