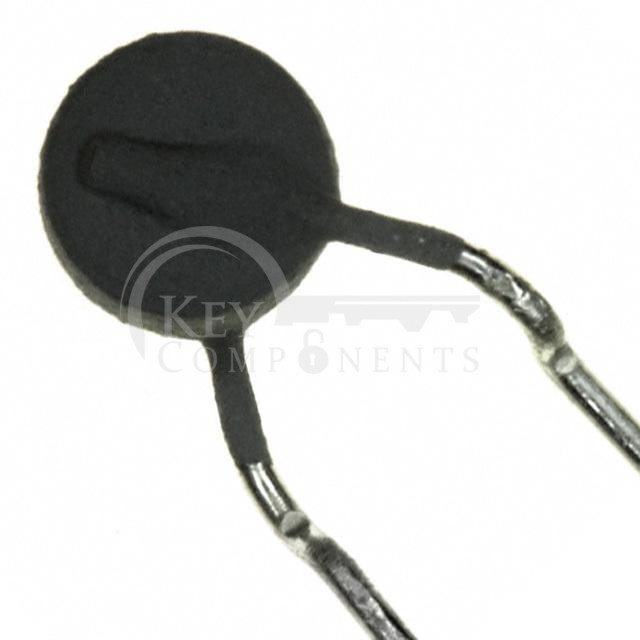

PTCCL05H100SBE
| Manufacturer Part | PTCCL05H100SBE |
|---|---|
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Description | PTC RESET FUSE 600V RADIAL DISC |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Ceramic |
| Voltage - Max: | 600V |
| Current - Max: | 2 A |
| Current - Hold (Ih) (Max): | 10 mA |
| Current - Trip (It): | 20 mA |
| Time to Trip: | - |
| Resistance - Initial (Ri) (Min): | - |
| Resistance - Post Trip (R1) (Max): | - |
| Resistance - 25°C (Typ): | 1.6 kOhms |
| Operating Temperature: | -20°C ~ 85°C |
| Ratings: | - |
| Mounting Type: | Through Hole |
| Package / Case: | Radial, Disc |
| Size / Dimension: | 0.197" Dia x 0.177" T (5.00mm x 4.50mm) |
| Height - Seated (Max): | 0.409" (10.40mm) |
| Thickness (Max): | - |
| Lead Spacing: | 0.197" (5.00mm) |
