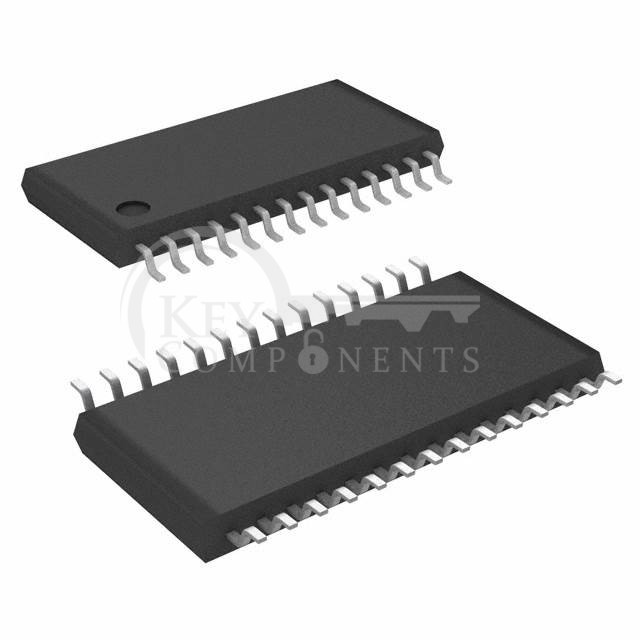

6EDL04N02PRXUMA1
| Manufacturer Part | 6EDL04N02PRXUMA1 |
|---|---|
| Manufacturer | Infineon Technologies |
| Description | IC GATE DRVR HALF-BRIDGE 28TSSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Driven Configuration: | Half-Bridge |
| Channel Type: | 3-Phase |
| Number of Drivers: | 6 |
| Gate Type: | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply: | 10V ~ 17.5V |
| Logic Voltage - VIL, VIH: | 1.1V, 1.7V |
| Current - Peak Output (Source, Sink): | - |
| Input Type: | Non-Inverting |
| High Side Voltage - Max (Bootstrap): | 200 V |
| Rise / Fall Time (Typ): | 60ns, 26ns |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package: | PG-TSSOP-28 |
