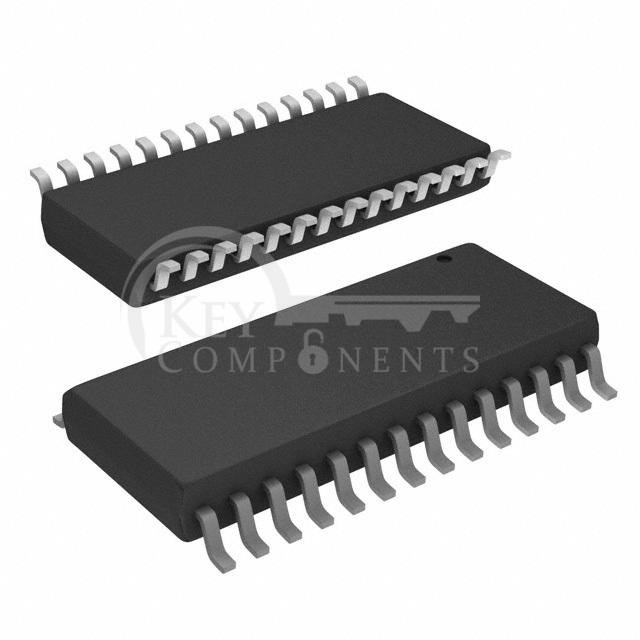

6EDL04I06PTXUMA1

Type	Description
Product Status:	Active
Driven Configuration:	Half-Bridge
Channel Type:	3-Phase
Number of Drivers:	6
Gate Type:	IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply:	13V ~ 17.5V
Logic Voltage - VIL, VIH:	1.1V, 1.7V
Current - Peak Output (Source, Sink):	-
Input Type:	Non-Inverting
High Side Voltage - Max (Bootstrap):	600 V
Rise / Fall Time (Typ):	60ns, 26ns
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	28-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	PG-DSO-28

We provide 90 days warranty;
The Pre-Shipment Inspection (PSI) will be applied;
If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
Taxes & VAT will not be included;
