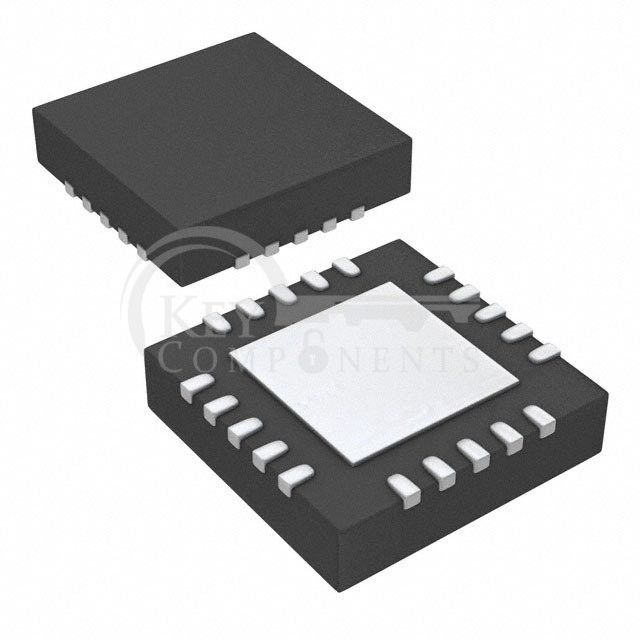

PI3EQX5801ZDEX
| Manufacturer Part | PI3EQX5801ZDEX |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC REDRIVER USB 3.0 1CH 20TQFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Buffer, ReDriver |
| Applications: | USB 3.0 |
| Input: | CML |
| Output: | CML |
| Data Rate (Max): | 5Gbps |
| Number of Channels: | 1 |
| Delay Time: | 1.0ns |
| Signal Conditioning: | Input Equalization, Output De-Emphasis |
| Capacitance - Input: | - |
| Voltage - Supply: | 1.5V, 3.3V |
| Current - Supply: | - |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 20-WFQFN Exposed Pad |
| Supplier Device Package: | 20-TQFN (4x4) |
