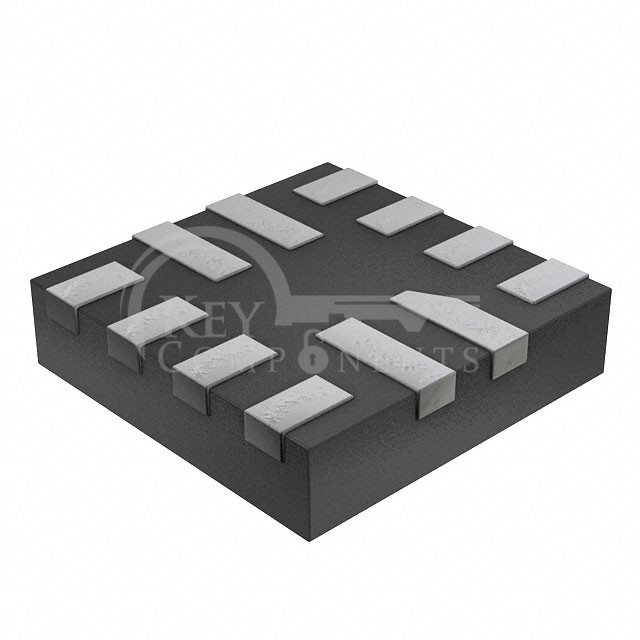

PTN36001HXZ
| Manufacturer Part | PTN36001HXZ |
|---|---|
| Manufacturer | NXP USA Inc. |
| Description | IC REDRIVER USB 3.0 12X2QFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Buffer, ReDriver |
| Applications: | USB 3.0 |
| Input: | - |
| Output: | - |
| Data Rate (Max): | - |
| Number of Channels: | 2 |
| Delay Time: | - |
| Signal Conditioning: | Input Equalization, Output De-Emphasis |
| Capacitance - Input: | - |
| Voltage - Supply: | - |
| Current - Supply: | - |
| Operating Temperature: | 0°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 12-XFQFN |
| Supplier Device Package: | 12-X2QFN (1.25x2.10) |
