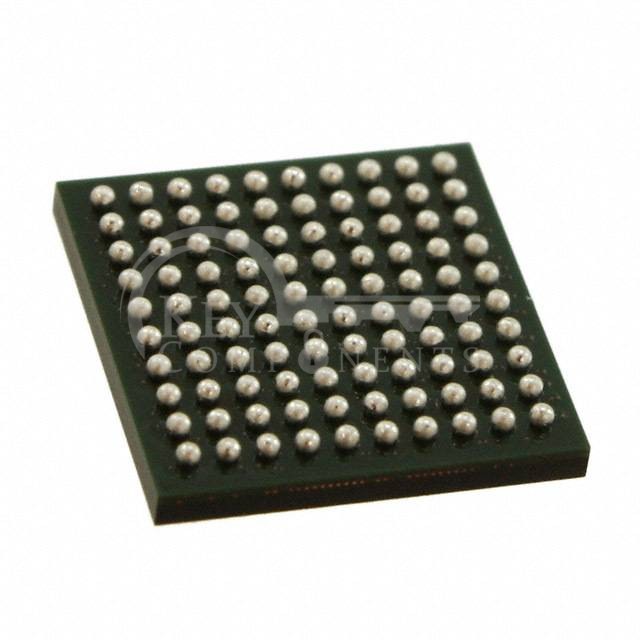

PI2EQX5804DNJEX
| Manufacturer Part | PI2EQX5804DNJEX |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC REDRIVER PCIE 4CH 100LBGA |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Buffer, ReDriver |
| Applications: | PCIe |
| Input: | CML |
| Output: | CML |
| Data Rate (Max): | 5Gbps |
| Number of Channels: | 4 |
| Delay Time: | 750ps |
| Signal Conditioning: | Input Equalization, Output De-Emphasis |
| Capacitance - Input: | 50 pF |
| Voltage - Supply: | 1.2V |
| Current - Supply: | 800mA |
| Operating Temperature: | 0°C ~ 70°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 100-LBGA |
| Supplier Device Package: | 100-LBGA (11x11) |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
