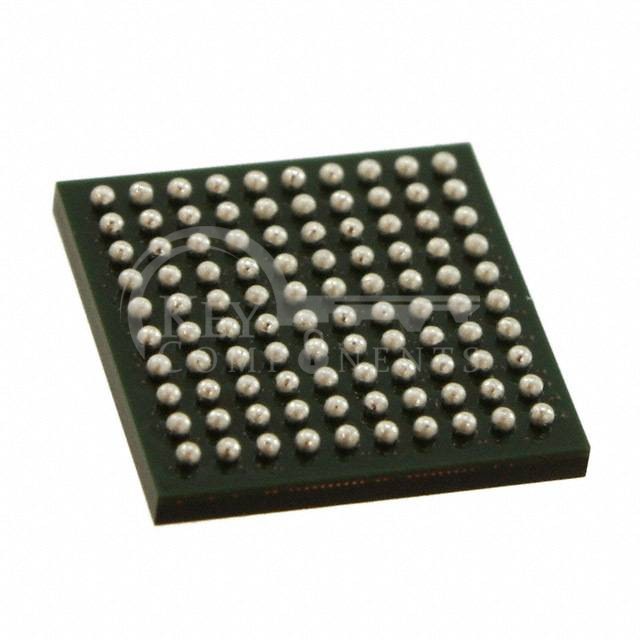

PI2EQX5804DNJE
| Manufacturer Part | PI2EQX5804DNJE |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC REDRIVER PCIE 4CH 100LBGA |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Buffer, ReDriver |
| Applications: | PCIe |
| Input: | CML |
| Output: | CML |
| Data Rate (Max): | 5Gbps |
| Number of Channels: | 4 |
| Delay Time: | 750ps |
| Signal Conditioning: | Input Equalization, Output De-Emphasis |
| Capacitance - Input: | 50 pF |
| Voltage - Supply: | 1.2V |
| Current - Supply: | 800mA |
| Operating Temperature: | 0°C ~ 70°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 100-LBGA |
| Supplier Device Package: | 100-LBGA (11x11) |
