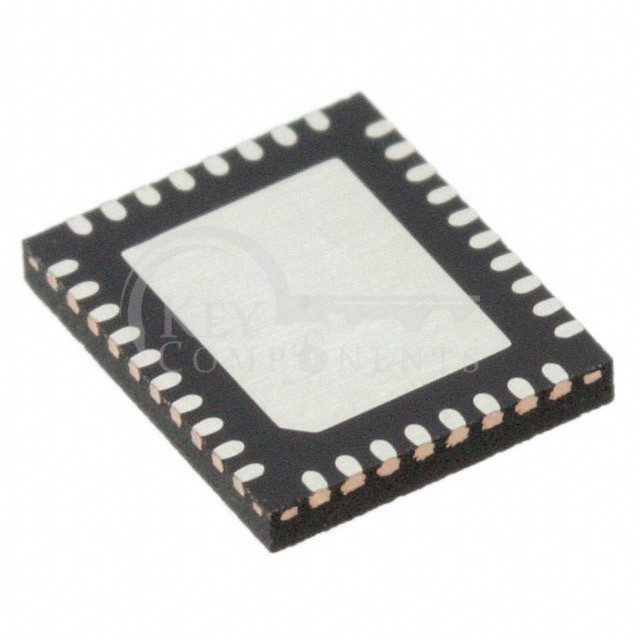

PI2EQX3201BLZFE
| Manufacturer Part | PI2EQX3201BLZFE |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC REDRIVER SATA2 2CH 36TQFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Buffer, ReDriver |
| Applications: | SATA2 |
| Input: | CML |
| Output: | CML |
| Data Rate (Max): | 3Gbps |
| Number of Channels: | 2 |
| Delay Time: | 2.0ns |
| Signal Conditioning: | Input Equalization, Output De-Emphasis |
| Capacitance - Input: | - |
| Voltage - Supply: | 1.5V, 1.8V |
| Current - Supply: | 90mA |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 36-WFQFN Exposed Pad |
| Supplier Device Package: | 36-TQFN (6x5) |
