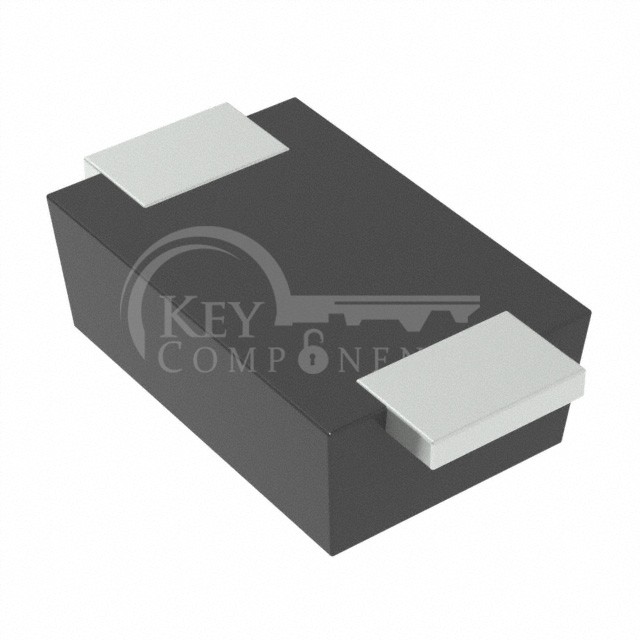

SJD12C12L01
| Manufacturer Part | SJD12C12L01 |
|---|---|
| Manufacturer | YAGEO |
| Description | TVS DIODE 12VWM 19.9VC SOD123S |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | - |
| Bidirectional Channels: | 1 |
| Voltage - Reverse Standoff (Typ): | 12V |
| Voltage - Breakdown (Min): | 13.3V |
| Voltage - Clamping (Max) @ Ipp: | 19.9V |
| Current - Peak Pulse (10/1000µs): | 10.1A |
| Power - Peak Pulse: | 200W |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | - |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | DO-219AA |
| Supplier Device Package: | SOD-123S |
