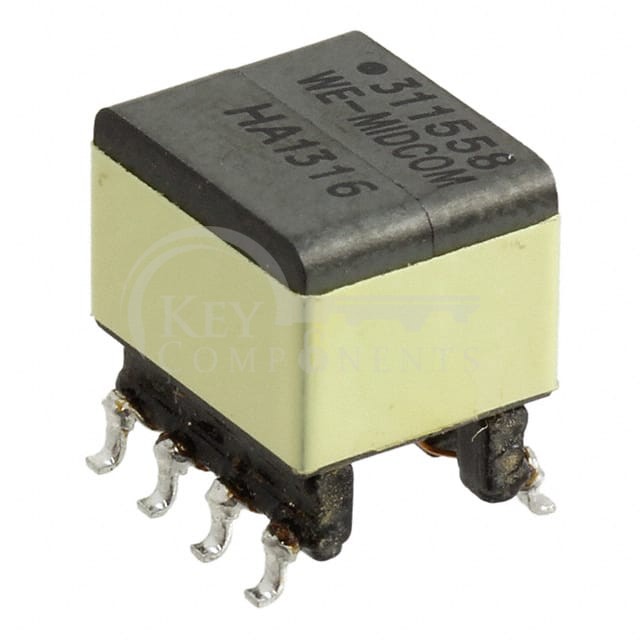

750311558
| Manufacturer Part | 750311558 |
|---|---|
| Manufacturer | Würth Elektronik |
| Description | FLYBACK TRANSFORMER WE-FB |
| Category | Transformers |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | For DC/DC Converters |
| Applications: | Flyback Converters |
| Intended Chipset: | LT8300 |
| Chipset Manufacturer: | Linear Technology |
| Voltage - Primary: | 35 ~ 75V |
| Voltage - Auxiliary: | 5V |
| Voltage - Isolation: | 1500Vrms |
| Inductance @ Frequency: | 300µH @ 10kHz |
| Frequency: | 200 ~ 300kHz |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Size / Dimension: | - |
| Height - Seated (Max): | 0.415" (10.54mm) |
| Footprint: | 0.385" L x 0.360" W (9.78mm x 9.14mm) |
| Style: | - |
