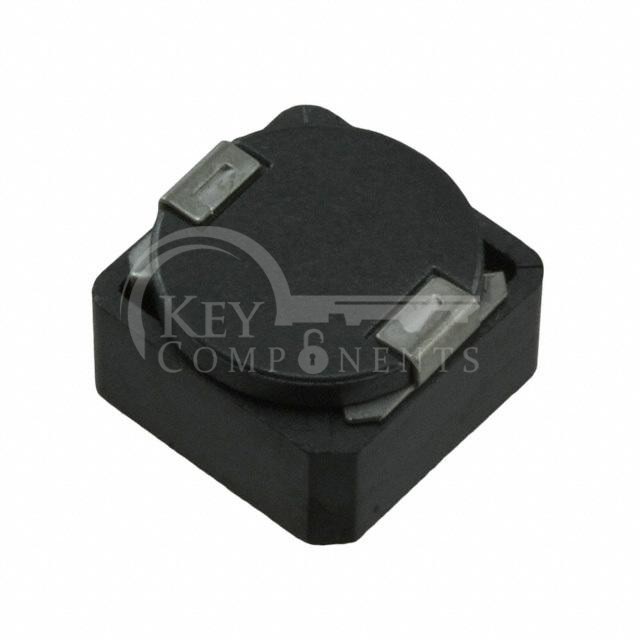

7447797300
| Manufacturer Part | 7447797300 |
|---|---|
| Manufacturer | Würth Elektronik |
| Description | FIXED IND 2.5UH 8.4A 10.2MOHM SM |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Drum Core, Wirewound |
| Material - Core: | Nickel Zinc Ferrite (NiZn) |
| Inductance: | 2.5 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 8.4 A |
| Current - Saturation (Isat): | 10.5A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 10.2mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 61MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 150°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.402" L x 0.402" W (10.20mm x 10.20mm) |
| Height - Seated (Max): | 0.177" (4.50mm) |
