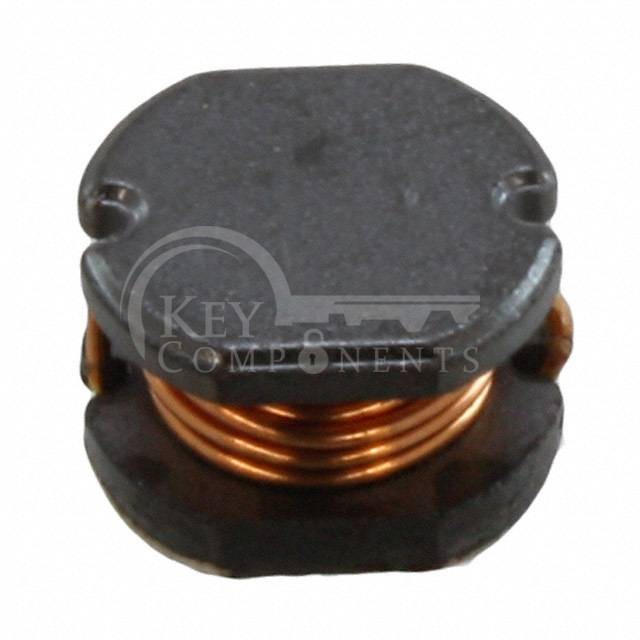

744775156
| Manufacturer Part | 744775156 |
|---|---|
| Manufacturer | Würth Elektronik |
| Description | FIXED IND 56UH 1.04A 240MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 56 µH |
| Tolerance: | ±10% |
| Current Rating (Amps): | 1.04 A |
| Current - Saturation (Isat): | 1.14A |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 240mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 10.5MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 10 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Height - Seated (Max): | 0.217" (5.50mm) |
