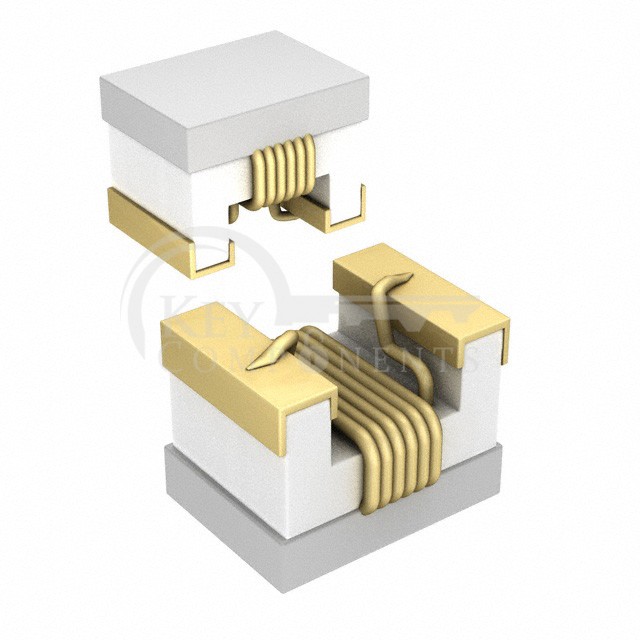

744760118C
| Manufacturer Part | 744760118C |
|---|---|
| Manufacturer | Würth Elektronik |
| Description | FIXED IND 18NH 500MA 200MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ceramic |
| Inductance: | 18 nH |
| Tolerance: | ±5% |
| Current Rating (Amps): | 500 mA |
| Current - Saturation (Isat): | - |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 200mOhm Max |
| Q @ Freq: | 50 @ 500MHz |
| Frequency - Self Resonant: | 3.3GHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 250 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | 0805 |
| Size / Dimension: | 0.090" L x 0.067" W (2.29mm x 1.70mm) |
| Height - Seated (Max): | 0.058" (1.48mm) |
