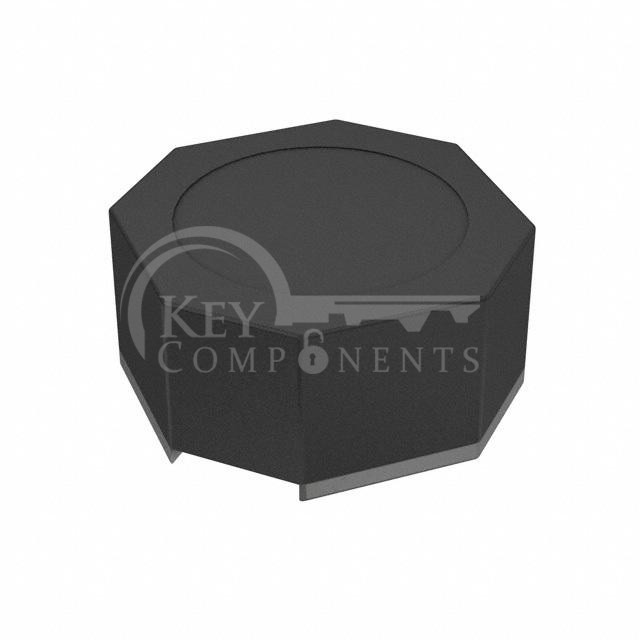

744029006
| Manufacturer Part | 744029006 |
|---|---|
| Manufacturer | Würth Elektronik |
| Description | FIXED IND 6.8UH 820MA 300MOHM SM |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 6.8 µH |
| Tolerance: | ±30% |
| Current Rating (Amps): | 820 mA |
| Current - Saturation (Isat): | 650mA |
| Shielding: | Shielded |
| DC Resistance (DCR): | 300mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 55MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | 2828 |
| Size / Dimension: | 0.110" L x 0.110" W (2.80mm x 2.80mm) |
| Height - Seated (Max): | 0.059" (1.50mm) |
