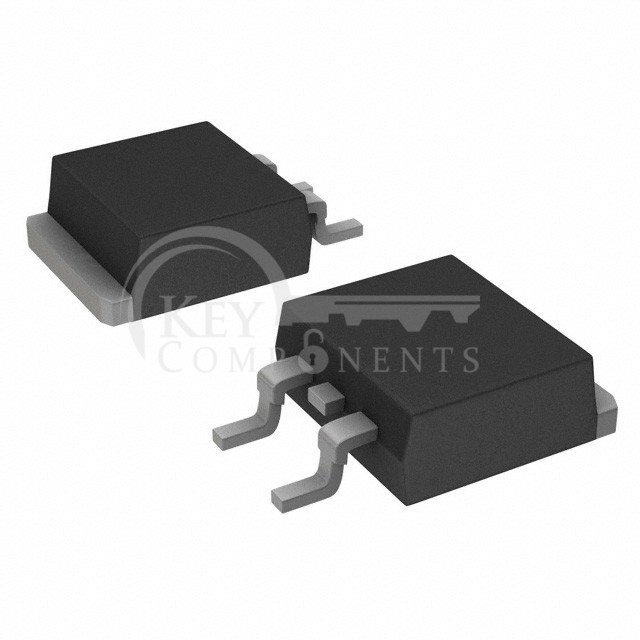

SUD19P06-60-E3

Manufacturer Part	SUD19P06-60-E3
Manufacturer	Vishay Siliconix
Description	MOSFET P-CH 60V 18.3A TO252
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	18.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	60mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	40 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1710 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	2.3W (Ta), 38.5W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TO-252AA
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
