IRF9640SPBF

Manufacturer Part	IRF9640SPBF
Manufacturer	Vishay Siliconix
Description	MOSFET P-CH 200V 11A D2PAK
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	200 V
Current - Continuous Drain (Id) @ 25°C:	11A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	500mOhm @ 6.6A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	44 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1200 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	3W (Ta), 125W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

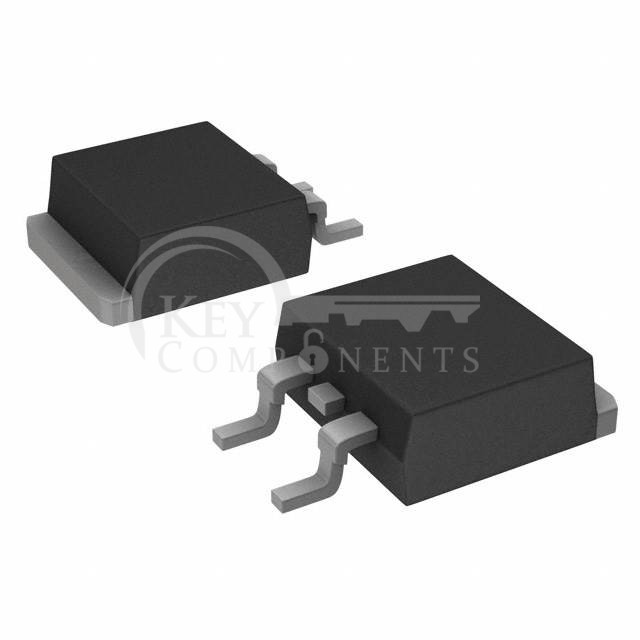

Supplier Device Package:	D²PAK (TO-263)
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
