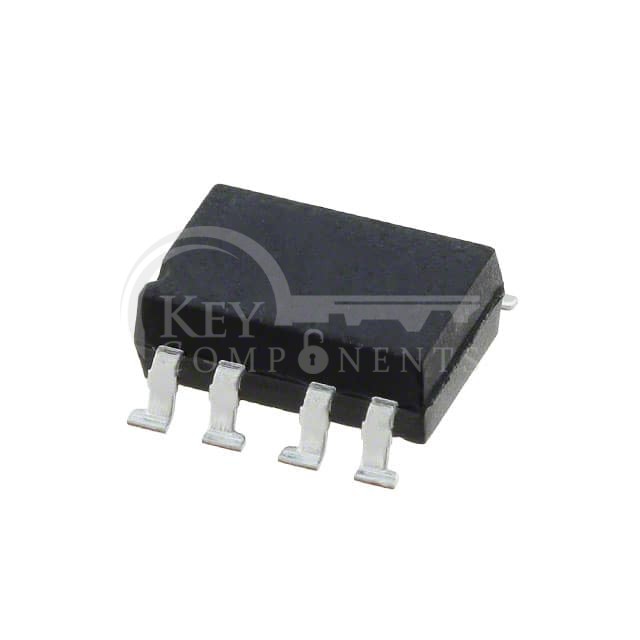

LH1262CAC
| Manufacturer Part | LH1262CAC |
|---|---|
| Manufacturer | Vishay Semiconductor Opto Division |
| Description | OPTOISO 5.3KV 2CH PHVOLT 8-SMD |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Channels: | 2 |
| Voltage - Isolation: | 5300Vrms |
| Current Transfer Ratio (Min): | - |
| Current Transfer Ratio (Max): | - |
| Turn On / Turn Off Time (Typ): | 35µs, 90µs |
| Rise / Fall Time (Typ): | - |
| Input Type: | DC |
| Output Type: | Photovoltaic |
| Voltage - Output (Max): | 15V |
| Current - Output / Channel: | 1µA |
| Voltage - Forward (Vf) (Typ): | 1.26V |
| Current - DC Forward (If) (Max): | 50 mA |
| Vce Saturation (Max): | - |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SMD |
| Supplier Device Package: | 8-SMD |
