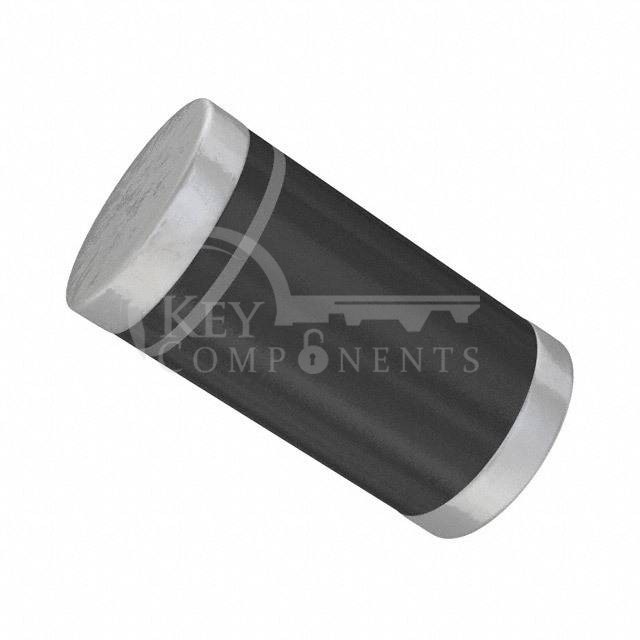

ZMY22-GS08
| Manufacturer Part | ZMY22-GS08 |
|---|---|
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Description | DIODE ZENER 22V 1W DO213AB |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Voltage - Zener (Nom) (Vz): | 22 V |
| Tolerance: | ±5% |
| Power - Max: | 1 W |
| Impedance (Max) (Zzt): | 13 Ohms |
| Current - Reverse Leakage @ Vr: | 500 nA @ 17 V |
| Voltage - Forward (Vf) (Max) @ If: | - |
| Operating Temperature: | 175°C |
| Mounting Type: | Surface Mount |
| Package / Case: | DO-213AB, MELF (Glass) |
| Supplier Device Package: | DO-213AB |
