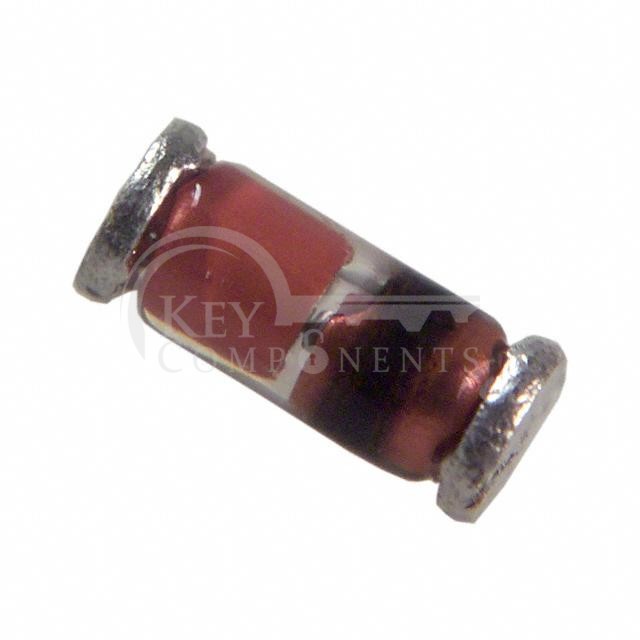

TLZ4V7B-GS08
| Manufacturer Part | TLZ4V7B-GS08 |
|---|---|
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Description | DIODE ZENER 4.7V 500MW SOD80 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Voltage - Zener (Nom) (Vz): | 4.7 V |
| Tolerance: | - |
| Power - Max: | 500 mW |
| Impedance (Max) (Zzt): | 25 Ohms |
| Current - Reverse Leakage @ Vr: | 5 µA @ 1 V |
| Voltage - Forward (Vf) (Max) @ If: | 1.5 V @ 200 mA |
| Operating Temperature: | -65°C ~ 175°C |
| Mounting Type: | Surface Mount |
| Package / Case: | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package: | SOD-80 MiniMELF |
