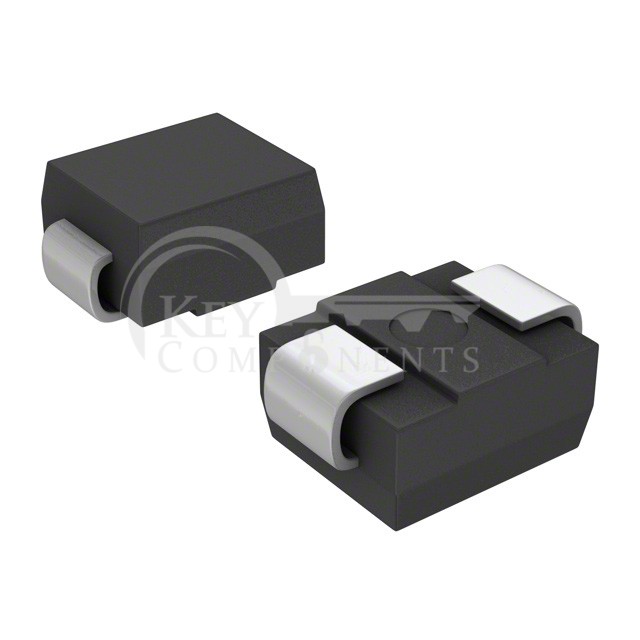

SMBZ5929B-M3/52
| Manufacturer Part | SMBZ5929B-M3/52 |
|---|---|
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Description | DIODE ZENER 15V 550MW DO214AA |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Voltage - Zener (Nom) (Vz): | 15 V |
| Tolerance: | ±5% |
| Power - Max: | 550 mW |
| Impedance (Max) (Zzt): | 7 Ohms |
| Current - Reverse Leakage @ Vr: | 1 µA @ 9.9 V |
| Voltage - Forward (Vf) (Max) @ If: | 1.5 V @ 200 mA |
| Operating Temperature: | -55°C ~ 150°C |
| Mounting Type: | Surface Mount |
| Package / Case: | DO-214AA, SMB |
| Supplier Device Package: | DO-214AA (SMBJ) |
