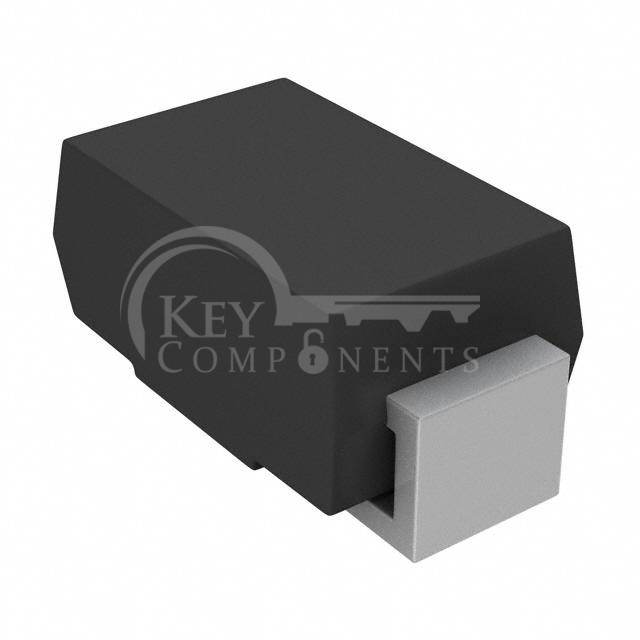

BZG03C47TR
| Manufacturer Part | BZG03C47TR |
|---|---|
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Description | DIODE ZENER 47V 1.25W DO214AC |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Voltage - Zener (Nom) (Vz): | 47 V |
| Tolerance: | - |
| Power - Max: | 1.25 W |
| Impedance (Max) (Zzt): | 45 Ohms |
| Current - Reverse Leakage @ Vr: | 1 µA @ 36 V |
| Voltage - Forward (Vf) (Max) @ If: | 1.2 V @ 500 mA |
| Operating Temperature: | -65°C ~ 150°C |
| Mounting Type: | Surface Mount |
| Package / Case: | DO-214AC, SMA |
| Supplier Device Package: | DO-214AC (SMA) |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
