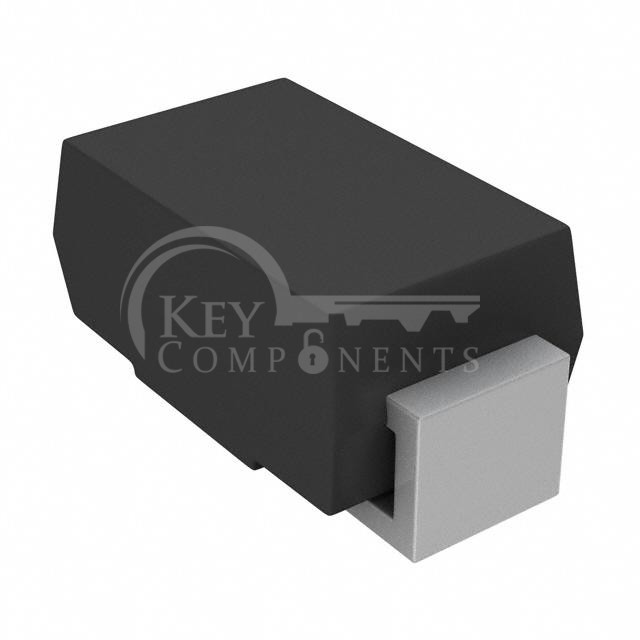

BZG03C10TR
| Manufacturer Part | BZG03C10TR |
|---|---|
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Description | DIODE ZENER 10V 1.25W DO214AC |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Voltage - Zener (Nom) (Vz): | 10 V |
| Tolerance: | ±6% |
| Power - Max: | 1.25 W |
| Impedance (Max) (Zzt): | 4 Ohms |
| Current - Reverse Leakage @ Vr: | 10 µA @ 7.5 V |
| Voltage - Forward (Vf) (Max) @ If: | 1.2 V @ 500 mA |
| Operating Temperature: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | DO-214AC, SMA |
| Supplier Device Package: | DO-214AC (SMA) |
