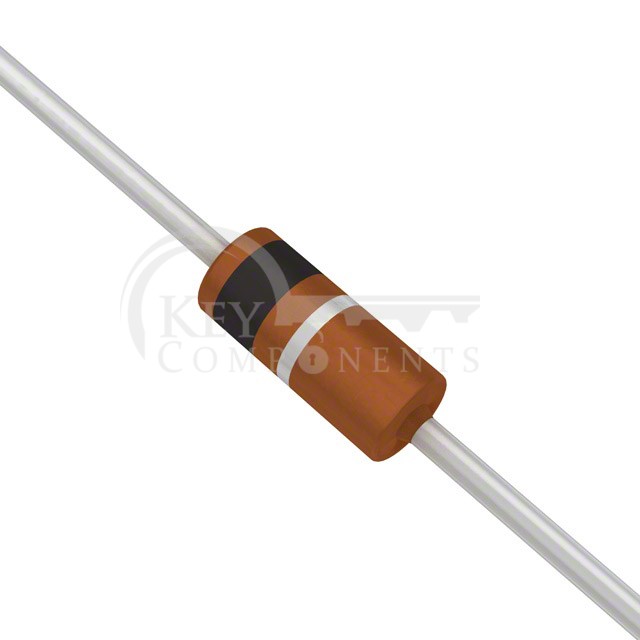

1N5242B-TR
| Manufacturer Part | 1N5242B-TR |
|---|---|
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Description | DIODE ZENER 12V 500MW DO35 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Voltage - Zener (Nom) (Vz): | 12 V |
| Tolerance: | ±5% |
| Power - Max: | 500 mW |
| Impedance (Max) (Zzt): | 30 Ohms |
| Current - Reverse Leakage @ Vr: | 1 µA @ 9.1 V |
| Voltage - Forward (Vf) (Max) @ If: | 1.1 V @ 200 mA |
| Operating Temperature: | - |
| Mounting Type: | Through Hole |
| Package / Case: | DO-204AH, DO-35, Axial |
| Supplier Device Package: | DO-35 (DO-204AH) |
