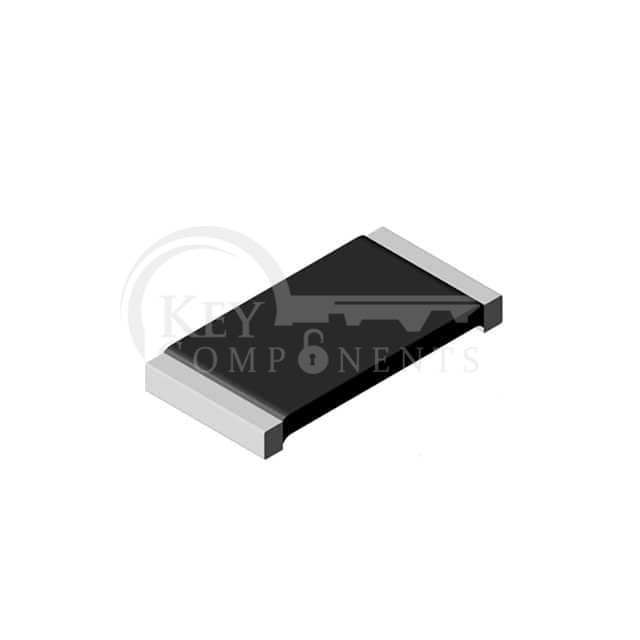

WSL0805R1000DEA
| Manufacturer Part | WSL0805R1000DEA |
|---|---|
| Manufacturer | Vishay Dale |
| Description | RES 0.1 OHM 0.5% 1/8W 0805 |
| Category | Resistors |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Resistance: | 100 mOhms |
| Tolerance: | ±0.5% |
| Power (Watts): | 0.125W, 1/8W |
| Composition: | Metal Element |
| Features: | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient: | ±75ppm/°C |
| Operating Temperature: | -65°C ~ 170°C |
| Package / Case: | 0805 (2012 Metric) |
| Supplier Device Package: | 0805 |
| Ratings: | AEC-Q200 |
| Size / Dimension: | 0.080" L x 0.050" W (2.03mm x 1.27mm) |
| Height - Seated (Max): | 0.018" (0.46mm) |
| Number of Terminations: | 2 |
| Failure Rate: | - |
