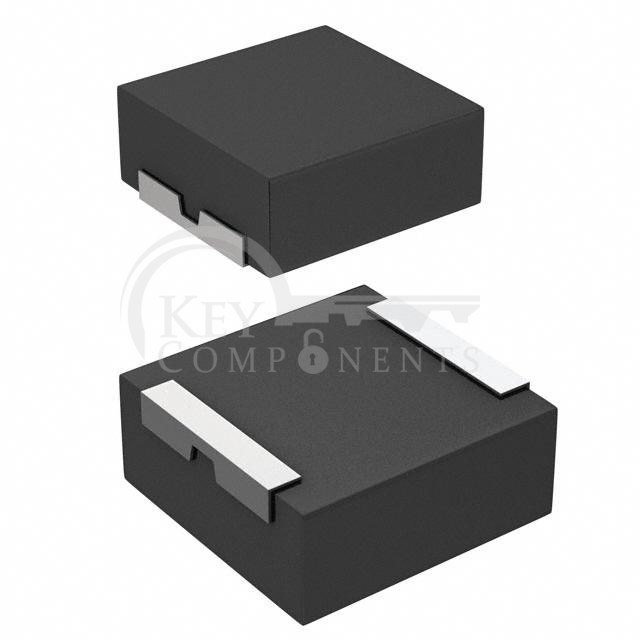

IHLP6767DZER2R2M01
| Manufacturer Part | IHLP6767DZER2R2M01 |
|---|---|
| Manufacturer | Vishay Dale |
| Description | FIXED IND 2.2UH 19A 6.4 MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Molded |
| Material - Core: | - |
| Inductance: | 2.2 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 19 A |
| Current - Saturation (Isat): | 30A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 6.4mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | - |
| Ratings: | - |
| Operating Temperature: | -55°C ~ 125°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.675" L x 0.675" W (17.15mm x 17.15mm) |
| Height - Seated (Max): | 0.157" (4.00mm) |
