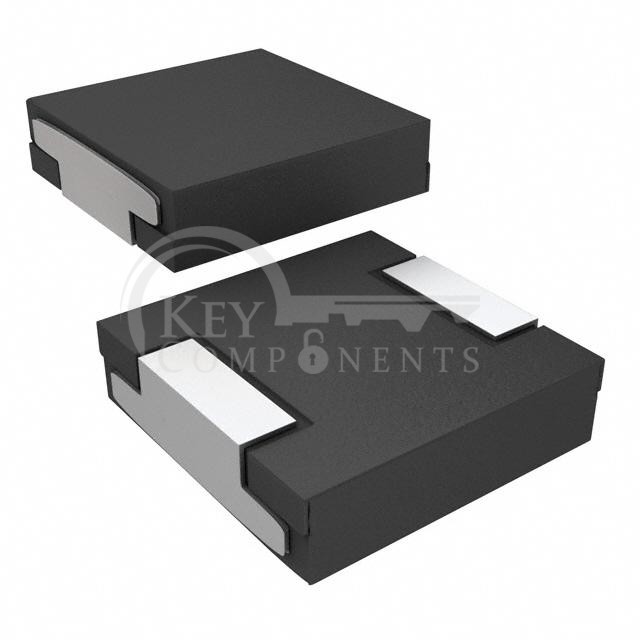

IHLP5050CEER5R6M01
| Manufacturer Part | IHLP5050CEER5R6M01 |
|---|---|
| Manufacturer | Vishay Dale |
| Description | FIXED IND 5.6UH 9.5A 19 MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Molded |
| Material - Core: | - |
| Inductance: | 5.6 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 9.5 A |
| Current - Saturation (Isat): | 19A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 19mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | - |
| Ratings: | - |
| Operating Temperature: | -55°C ~ 125°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.520" L x 0.508" W (13.20mm x 12.90mm) |
| Height - Seated (Max): | 0.138" (3.50mm) |
