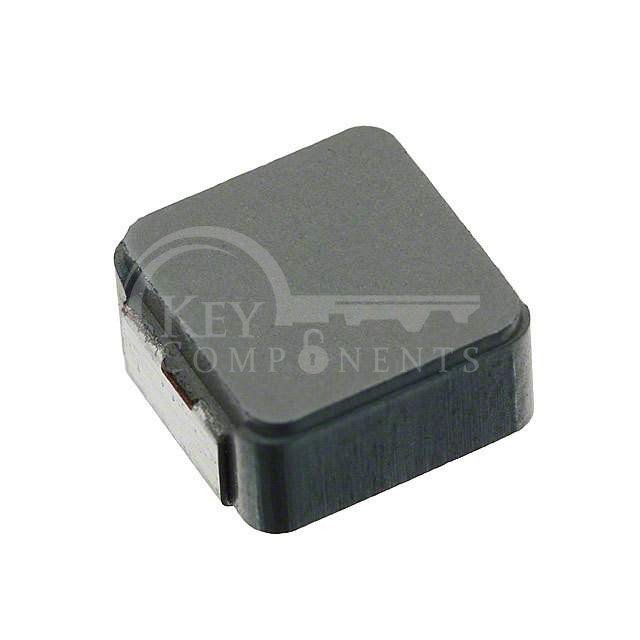

IHLP3232DZERR82M01
| Manufacturer Part | IHLP3232DZERR82M01 |
|---|---|
| Manufacturer | Vishay Dale |
| Description | FIXED IND 820NH 19A 4.42MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Molded |
| Material - Core: | - |
| Inductance: | 820 nH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 19 A |
| Current - Saturation (Isat): | 24.2A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 4.42mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 53MHz |
| Ratings: | - |
| Operating Temperature: | -55°C ~ 125°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.340" L x 0.322" W (8.64mm x 8.18mm) |
| Height - Seated (Max): | 0.157" (4.00mm) |
