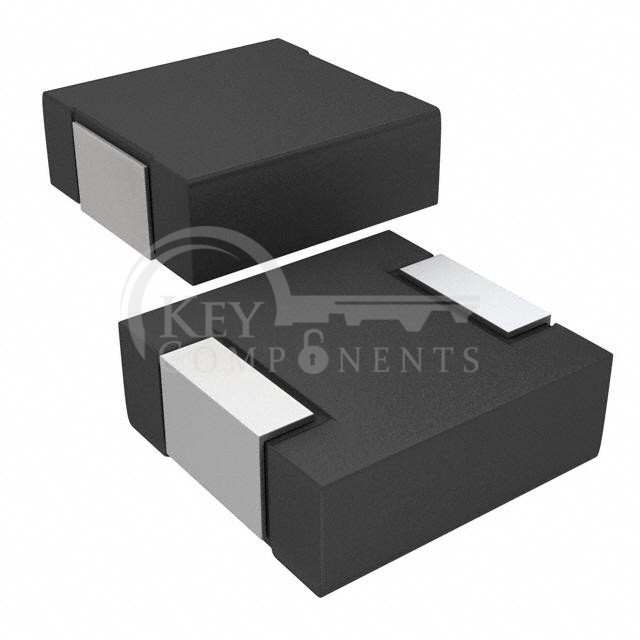

IHLP2525EZER3R3M01
| Manufacturer Part | IHLP2525EZER3R3M01 |
|---|---|
| Manufacturer | Vishay Dale |
| Description | FIXED IND 3.3UH 8A 20.9 MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Molded |
| Material - Core: | Iron Powder |
| Inductance: | 3.3 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 8 A |
| Current - Saturation (Isat): | 8A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 20.9mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | - |
| Ratings: | - |
| Operating Temperature: | -55°C ~ 125°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
| Height - Seated (Max): | 0.197" (5.00mm) |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
Related parts
Parts Tags
IHLP2525EZER3R3M01 Price
IHLP2525EZER3R3M01 Distributor
IHLP2525EZER3R3M01 Manufacturer
IHLP2525EZER3R3M01 Technical Data
IHLP2525EZER3R3M01 PDF
IHLP2525EZER3R3M01 Datasheet
IHLP2525EZER3R3M01 Picture
IHLP2525EZER3R3M01 Image
IHLP2525EZER3R3M01 Part
IHLP2525EZER3R3M01 Stock
IHLP2525EZER3R3M01 Inventory
IHLP2525EZER3R3M01 Rfq
IHLP2525EZER3R3M01 Inquiry
IHLP2525EZER3R3M01 Online Order
Quote Request
- Min. :
- 1
- Availability :
- 6073 pieces
