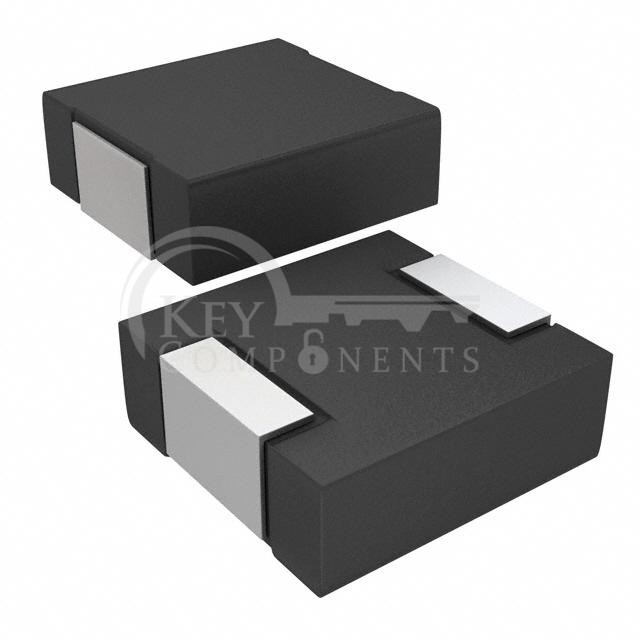

IHLM2525CZER3R3M07
| Manufacturer Part | IHLM2525CZER3R3M07 |
|---|---|
| Manufacturer | Vishay Dale |
| Description | FIXED IND 3.3UH 6A 28.21MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | - |
| Material - Core: | - |
| Inductance: | 3.3 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 6 A |
| Current - Saturation (Isat): | 13.5A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 28.21mOhm |
| Q @ Freq: | - |
| Frequency - Self Resonant: | - |
| Ratings: | - |
| Operating Temperature: | -55°C ~ 125°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
| Height - Seated (Max): | 0.118" (3.00mm) |
