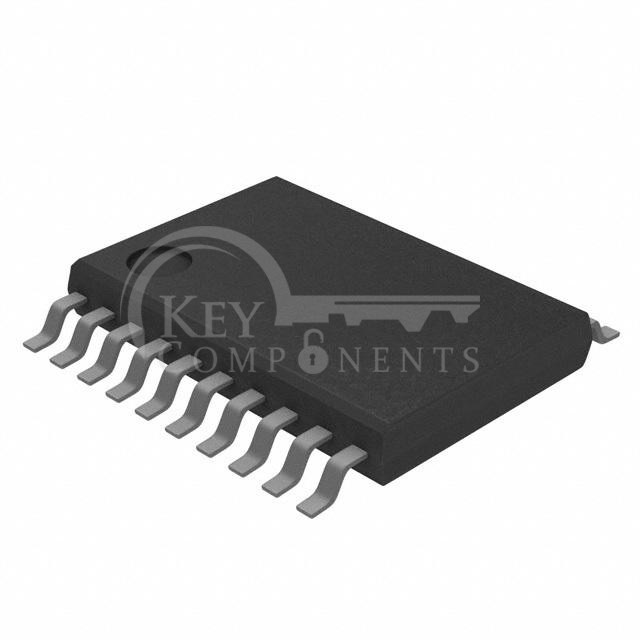

UCC3895PWTR
| Manufacturer Part | UCC3895PWTR |
|---|---|
| Manufacturer | Unitrode |
| Description | IC OFFLINE SW FULL-BRG 20TSSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Type: | PWM |
| Function: | - |
| Output Configuration: | Positive |
| Topology: | Phase-Shifted Full-Bridge |
| Number of Outputs: | 1 |
| Output Phases: | 1 |
| Voltage - Supply (Vcc/Vdd): | 10V ~ 16.5V |
| Frequency - Switching: | 1MHz |
| Duty Cycle (Max): | 100% |
| Synchronous Rectifier: | - |
| Clock Sync: | Yes |
| Serial Interfaces: | - |
| Control Features: | Frequency Control, Soft Start, Sync |
| Operating Temperature: | 0°C ~ 70°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package: | 20-TSSOP |
