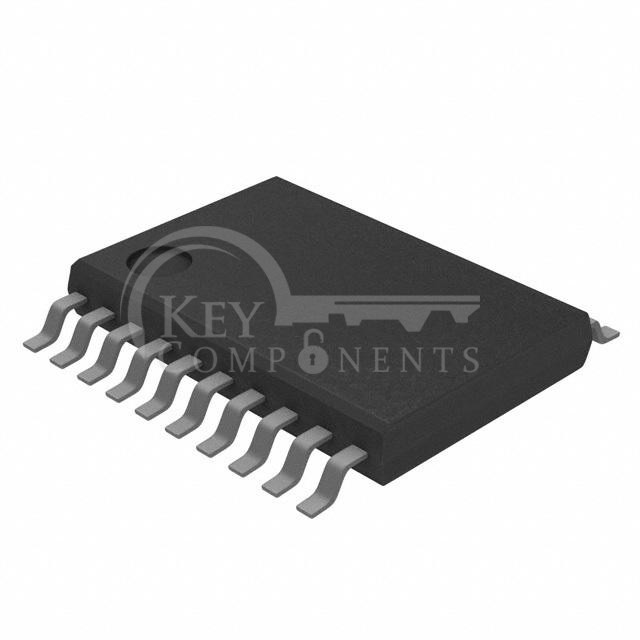

TC74VCX244FTEL
| Manufacturer Part | TC74VCX244FTEL |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | IC BUF NON-INVERT 3.6V 20TSSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Not For New Designs |
| Logic Type: | Buffer, Non-Inverting |
| Number of Elements: | 2 |
| Number of Bits per Element: | 4 |
| Input Type: | - |
| Output Type: | 3-State |
| Current - Output High, Low: | 24mA, 24mA |
| Voltage - Supply: | 1.2V ~ 3.6V |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package: | 20-TSSOP |
