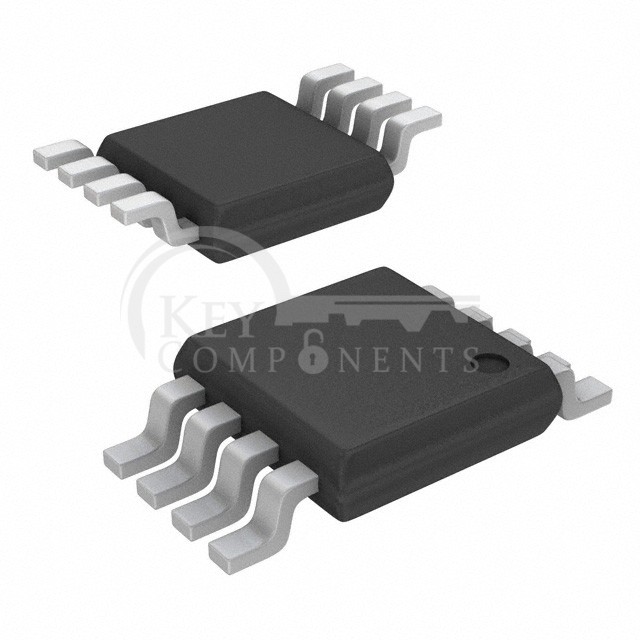

XC74WL14AASR
| Manufacturer Part | XC74WL14AASR |
|---|---|
| Manufacturer | Torex Semiconductor Ltd |
| Description | IC INVERT SCHMITT 3CH 3IN 8MSOPB |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Logic Type: | Inverter |
| Number of Circuits: | 3 |
| Number of Inputs: | 3 |
| Features: | Schmitt Trigger |
| Voltage - Supply: | 2V ~ 5.5V |
| Current - Quiescent (Max): | 1 µA |
| Current - Output High, Low: | 8mA, 8mA |
| Logic Level - Low: | 0.9V ~ 1.65V |
| Logic Level - High: | 2.2V ~ 3.85V |
| Max Propagation Delay @ V, Max CL: | 10.6ns @ 5V, 50pF |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 8-MSOPB |
| Package / Case: | 8-TSSOP, 8-MSOP (0.110", 2.80mm Width) |
