UC3526AN

Manufacturer Part	UC3526AN
Manufacturer	Texas Instruments
Description	IC REG CTRLR MULT TOPOLOGY 18DIP
Category	Integrated Circuits (ICs)
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
Output Type:	Transistor Driver
Function:	Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration:	Positive
Topology:	Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
Number of Outputs:	2
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	7V ~ 35V
Frequency - Switching:	1Hz ~ 600kHz
Duty Cycle (Max):	49%
Synchronous Rectifier:	Yes
Clock Sync:	Yes
Serial Interfaces:	-
Control Features:	Enable, Frequency Control, Reset, Soft Start
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Through Hole

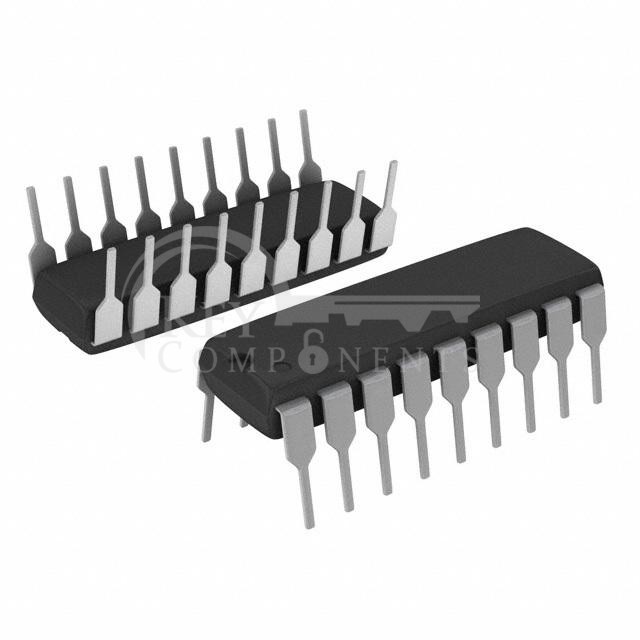

Package / Case:	18-DIP (0.300", 7.62mm)
Supplier Device Package:	18-PDIP
