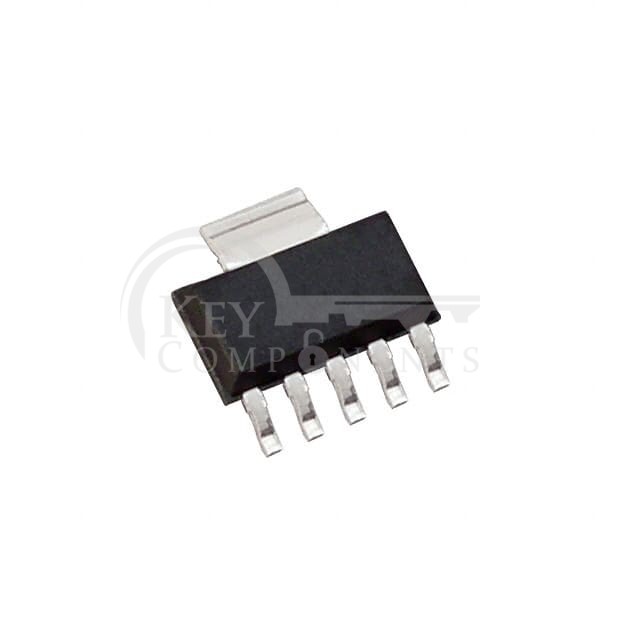

TPS73801DCQR
| Manufacturer Part | TPS73801DCQR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC REG LINEAR POS ADJ 1A SOT223 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Configuration: | Positive |
| Output Type: | Adjustable |
| Number of Regulators: | 1 |
| Voltage - Input (Max): | 20V |
| Voltage - Output (Min/Fixed): | 1.21V |
| Voltage - Output (Max): | 20V |
| Voltage Dropout (Max): | 0.5V @ 1A |
| Current - Output: | 1A |
| Current - Quiescent (Iq): | 1.5 mA |
| Current - Supply (Max): | 80 mA |
| PSRR: | 58dB ~ 37dB (100Hz ~ 10kHz) |
| Control Features: | Enable |
| Protection Features: | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | SOT-223-6 |
| Supplier Device Package: | SOT-223-6 |
