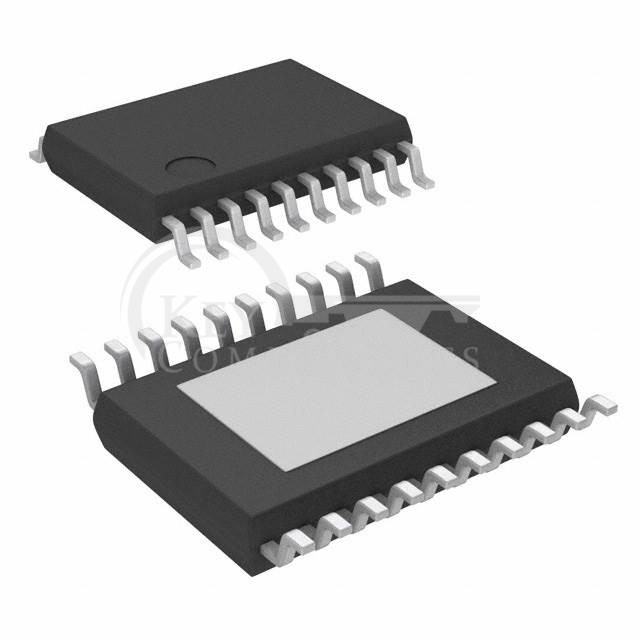

TPS61193PWPR
| Manufacturer Part | TPS61193PWPR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC LED DRVR RGLTR PWM 20HTSSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | DC DC Regulator |
| Topology: | SEPIC, Step-Up (Boost) |
| Internal Switch(s): | Yes |
| Number of Outputs: | 3 |
| Voltage - Supply (Min): | 4.5V |
| Voltage - Supply (Max): | 45V |
| Voltage - Output: | 45V |
| Current - Output / Channel: | 100mA |
| Frequency: | 300kHz ~ 2.2MHz |
| Dimming: | PWM |
| Applications: | Backlight |
| Operating Temperature: | -40°C ~ 125°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 20-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package: | 20-HTSSOP |
