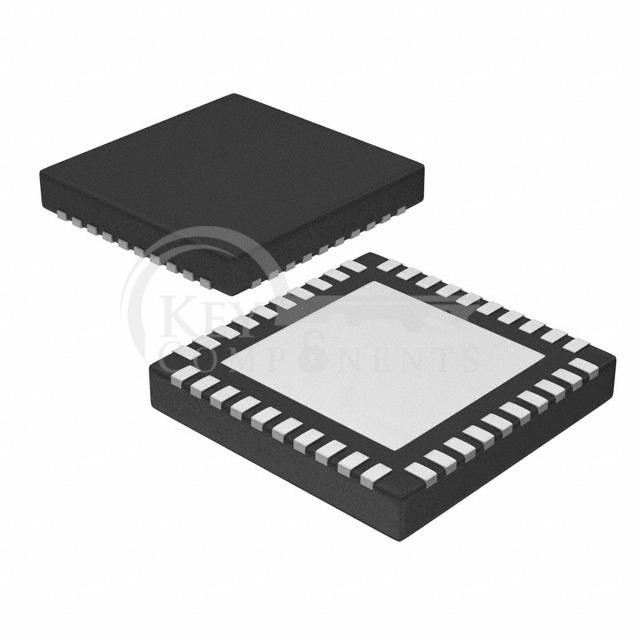

TPS40428RHAR
| Manufacturer Part | TPS40428RHAR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC REG CTRLR BUCK PMBUS 40VQFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Type: | PWM Signal |
| Function: | Step-Down |
| Output Configuration: | Positive |
| Topology: | Buck |
| Number of Outputs: | 2 |
| Output Phases: | 2 |
| Voltage - Supply (Vcc/Vdd): | 4.5V ~ 20V |
| Frequency - Switching: | 200kHz ~ 1.5MHz |
| Duty Cycle (Max): | - |
| Synchronous Rectifier: | No |
| Clock Sync: | Yes |
| Serial Interfaces: | PMBus |
| Control Features: | Frequency Control, Phase Control, Power Good |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 40-VFQFN Exposed Pad |
| Supplier Device Package: | 40-VQFN (6x6) |
