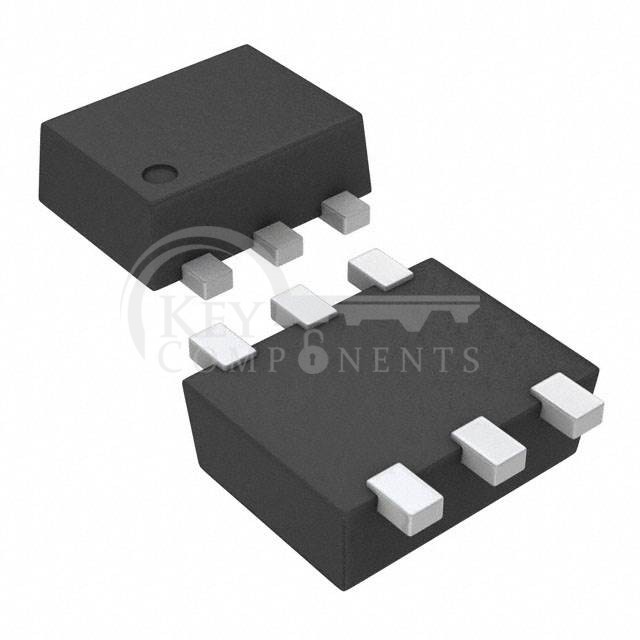

TMP302BDRLR
| Manufacturer Part | TMP302BDRLR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | THERMOSTAT ACT LOW OPEN DRN 6SOT |
| Category | Sensors, Transducers |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Trip Temperature Threshold: | Hot |
| Switching Temperature: | 70°C, 75°C, 80°C, 85°C |
| Accuracy: | ±0.2°C |
| Current - Output (Max): | 10mA |
| Output Type: | Open Drain |
| Output: | Active Low |
| Output Function: | /OverTemp |
| Selectable Hysteresis: | Yes |
| Features: | Selectable Trip Point |
| Voltage - Supply: | 1.4 V ~ 3.6 V |
| Current - Supply: | 8µA |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | SOT-563, SOT-666 |
| Supplier Device Package: | SOT-5X3 |
