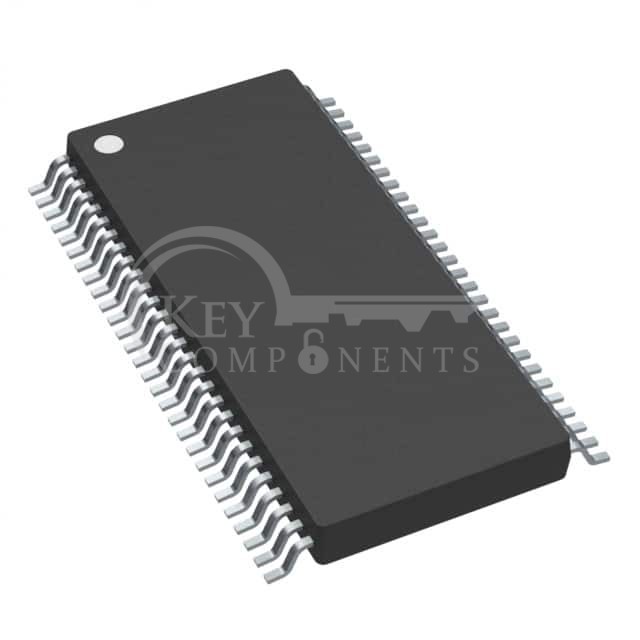

TAS5602DCAR
| Manufacturer Part | TAS5602DCAR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC AMP D DUAL/QUAD 20W 56HTSSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Class D |
| Output Type: | 2-Channel (Stereo) or 4-Channel (Quad) |
| Max Output Power x Channels @ Load: | 20W x 2 @ 8Ohm; 19W x 4 @ 4Ohm |
| Voltage - Supply: | 10V ~ 26V |
| Features: | Digital PWM Inputs, Short-Circuit and Thermal Protection |
| Mounting Type: | Surface Mount |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Supplier Device Package: | 56-HTSSOP |
| Package / Case: | 56-TFSOP (0.240", 6.10mm Width) Exposed Pad |
