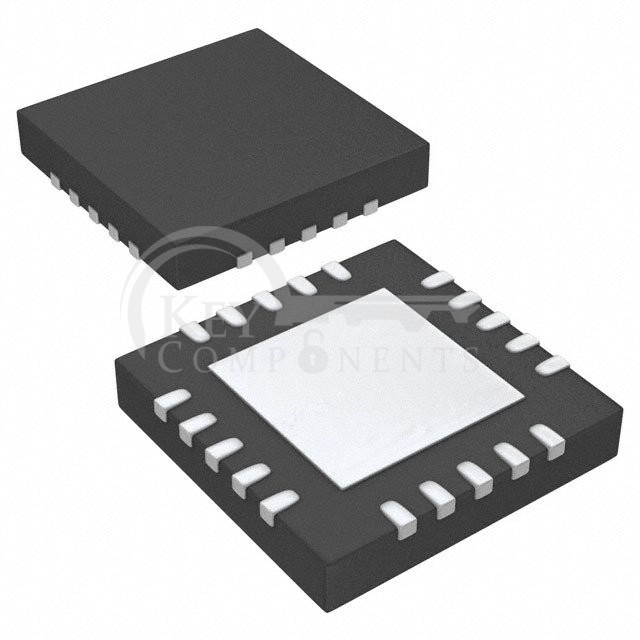

SN75LVPE802RTJR
| Manufacturer Part | SN75LVPE802RTJR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC SATA EXPRESS 2 CHAN 20QFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Buffer, ReDriver |
| Applications: | SATA |
| Input: | CML |
| Output: | VML |
| Data Rate (Max): | 8Gbps |
| Number of Channels: | 2 |
| Delay Time: | 323ps |
| Signal Conditioning: | Input Equalization, Output De-Emphasis |
| Capacitance - Input: | - |
| Voltage - Supply: | 3V ~ 3.6V |
| Current - Supply: | 57mA |
| Operating Temperature: | 0°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 20-WFQFN Exposed Pad |
| Supplier Device Package: | 20-QFN (4x4) |
