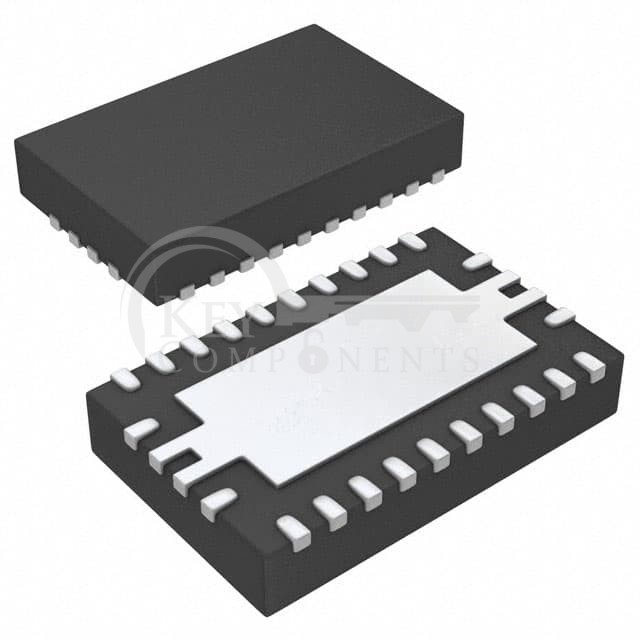

SN74LVCH8T245RHLR
| Manufacturer Part | SN74LVCH8T245RHLR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC TRANSLATION TXRX 5.5V 24VQFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Logic Type: | Translation Transceiver |
| Number of Elements: | 2 |
| Number of Bits per Element: | 8 |
| Input Type: | - |
| Output Type: | Tri-State, Non-Inverted |
| Current - Output High, Low: | 32mA, 32mA |
| Voltage - Supply: | 1.65V ~ 5.5V |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 24-VFQFN Exposed Pad |
| Supplier Device Package: | 24-VQFN (5.5x3.5) |
