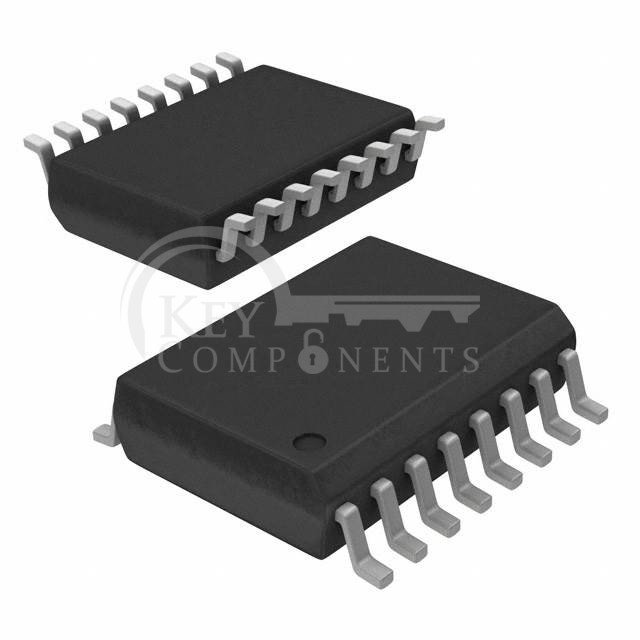

PCA9534DWR
| Manufacturer Part | PCA9534DWR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC I/O EXPANDER I2C 8B 16SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of I/O: | 8 |
| Interface: | I²C, SMBus |
| Interrupt Output: | Yes |
| Features: | POR |
| Output Type: | Push-Pull |
| Current - Output Source/Sink: | 10mA, 25mA |
| Clock Frequency: | 400 kHz |
| Voltage - Supply: | 2.3V ~ 5.5V |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package: | 16-SOIC |
