LMH7322SQ/NOPB
| Manufacturer Part | LMH7322SQ/NOPB |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC COMP DUAL 700PS RSPECL 24WQFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | General Purpose |
| Number of Elements: | 2 |
| Output Type: | Differential, LVDS, RSPECL |
| Voltage - Supply, Single/Dual (±): | 2.7V ~ 12V, ±1.35V ~ 6V |
| Voltage - Input Offset (Max): | 8mV @ 5V |
| Current - Input Bias (Max): | 5µA @ 5V |
| Current - Output (Typ): | 25mA |
| Current - Quiescent (Max): | 10mA |
| CMRR, PSRR (Typ): | 80dB CMRR, 80dB PSRR |
| Propagation Delay (Max): | 0.783ns |
| Hysteresis: | 75mV |
| Operating Temperature: | -40°C ~ 125°C |

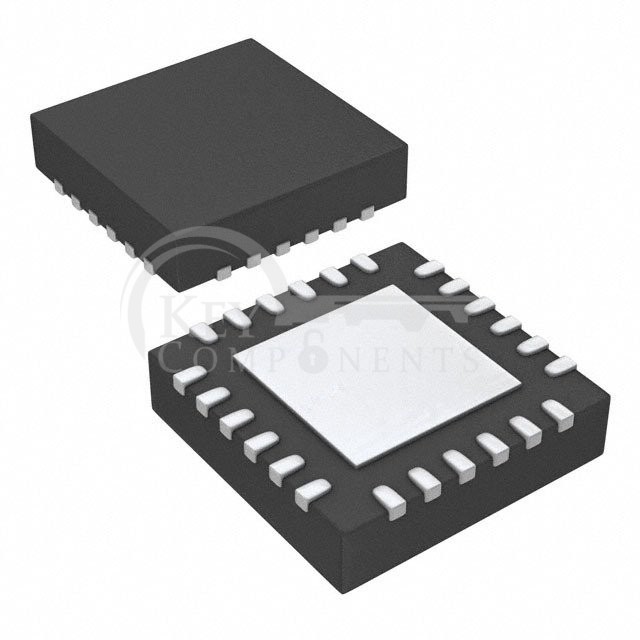

| Package / Case: | 24-WFQFN Exposed Pad |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 24-WQFN (4x4) |
